Ductless Systems

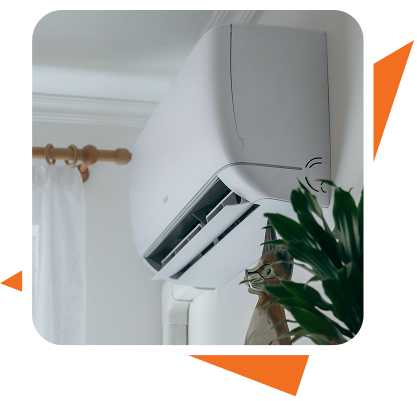

A ductless mini split system is composed of an indoor air handler/evaporator (fan coil), an outdoor condensing unit, an approximate 2.5-3" conduit that accommodates the power (wiring), refrigerant line sets and a PVC condensate line (drain)s an indoor fan, referred to as the head, and an outdoor compressor unit. Many styles of air handler/evaporator (fan coil) are readily available depending upon your project's needs. Ductless units can be either 1:1 Single mini-split systems or Multi-split systems that can heat/cool multiple rooms.

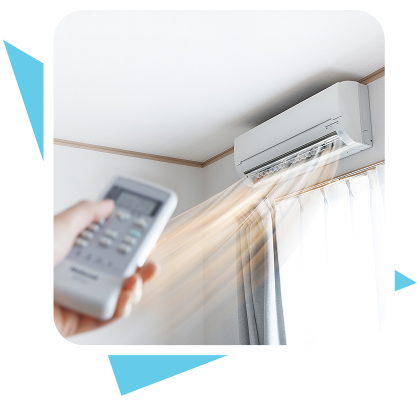

Ductless split systems can replace a traditional central ducted system or be used in addition to a central ducted system. It works in much the same way as a traditional air conditioner or heat pump, using an outdoor condensing unit, indoor air handler/evaporator (fan coil) with an outdoor condenser, attached to refrigerant line sets and a condensate drain line. The condenser is installed outside the home or business typically on a code-approved surface. The conduit is then run from the outdoor unit to the individual room within the structure that you choose, even an attic or garage. Depending upon the system design, the use of wall-mounted interior units, ceiling-mounted units, recessed fan coils, floor floor-mounted air handlers are then installed and secured in the appropriately desired spaces to control cooling, heating, and humidity as needed and designed. One or a series of indoor units and refrigeration lines are used to transfer the cooled air from the outdoor condenser to the indoor units of your choice. It works in reverse with heated air in the winter. Units can be placed in any room you like and because each unit is individual, you control the specific temperature in that room instead of needing to set one thermostat for the entire house. As a result, you save money by cooling or heating only the space you are using. One of its greatest advantages is TRUE ZONING!

Installation of a ductless mini split air conditioner is more complicated than a window unit but far less complicated than installing a central air conditioner. But, don't let that fool you. Ductless systems are very sensitive pieces of equipment and are quite unforgiving when mistakes are made. Small mistakes lead to HUGE problems with ductless systems. It is always best to have any AC system installed by licensed, trained professionals. Homeowner installations and using unlicensed individuals most often will void the manufacturer warranty on your new investment. Call us for a certified installation with one of our manufacturer-trained technicians – we will make sure that the installation is done correctly. We will evaluate, pressure test, perform a thorough vacuum, and charge your system with refrigerant as needed for your particular installation followed by start-up and commissioning reports on your system.

In general, the sound generated by a ductless air handler (sometimes referred to as a head) is equivalent to whispering in a library (between 21 and 30 decibels). The sound from an outdoor unit is more like normal conversation (60 decibels) but is less than a conventional air conditioning condenser.
